The clamp is considered one of the simplest and most basic machine parts. However, it’s also one of the most versatile and there are so many types of clamps available! You might think that there isn’t much to know about clamps, but that couldn’t be further from the truth. When you dive deeper into this subject, you will see how manufacturers keep coming up with new designs and types for all sorts of applications. The toggle clamp is a perfect example. It is a special clamping device that uses two levers to lock the clamping force onto the target object. In this article, we will take a closer look at different types of toggle clamps and how they are used in modern production lines.

What is a Toggle Clamp?

A toggle clamp is a special clamping device that uses two levers to lock the clamping force onto the target object. The design of the toggle clamps is simple, but they are super strong and reliable. The toggle clamp is a manual clamping device that has seen a lot of use in production lines because of its ability to work with a wide range of products. An adjustable pressure bar is used to clamp the toggle clamps onto the workpieces. The toggle clamp is often used when the right amount of force is needed to hold a workpiece in place during a production process. Toggle clamps are also suitable for clamping irregular-shaped parts because their design allows for a wide range of adjustment and pressure. They are also very easy to use and can be operated manually by just one person.

How Does a Toggle Clamp Work?

The toggle clamp is a manual clamping device that uses two levers to lock the clamping force onto the target object. One lever is used to open the clamp (open-close); the other lever is used to close the clamp (close-open). The pressure bar is connected to the end of the closing lever. When the clamping force is applied to the clamp, the levers will be forced together and squeeze the two ends of the clamping bar. The closing lever is also connected to a spring-loaded counterbalance weight at the end. The weight will ensure that the closing lever can be opened easily. When the clamping force is released, the levers will return to the open position automatically because of the spring pressure in the closing lever.

Types of Toggle Clamps

There are many types of toggle clamps available today. The most common types are: –

Band clamp: Band clamps are used to clamp cylindrical workpieces, such as pipes, in the manufacturing of boilers, pressure vessels, and other plants. Band clamps are also used for clamping irregular-shaped parts.

Bar clamp: Bar clamps are used for clamping bars or tubes that are round, square, or rectangular in shape. Bar clamps are available in a wide range of sizes, making them suitable for a variety of applications.

Beam clamp: Beam clamps are used to clamp bars or beams in place during production. They are also used to clamp irregular-shaped parts.

F-clamp: F-clamps are used for clamping sheets of metal on a worktable or other fixture.

This type of clamp is commonly used in the automotive and aircraft manufacturing industries.

Head clamp: Head clamps are used to clamp sheet metals in a worktable or fixture. They are also used to clamp irregular-shaped parts.

Pipe clamp: Pipe clamps are designed to clamp cylindrical tubes or pipes to a worktable or fixture. They are also used to clamp irregular-shaped parts.

Right angle clamp: Right angle clamps are used to hold two workpieces in place at a 90-degree angle. They are also used for clamping irregular-shaped parts.

Sheet clamp: Sheet clamps are used to hold two pieces of sheet metal in place. They are also used to hold irregular-shaped parts.

For more information see: https://sandfieldengineering.com/what-we-do/clamps-holding/toggle-clamps

How Are Toggle Clamps Used in Production?

A toggle clamp is used in production lines to hold a workpiece in place. Since they are clamping devices, they are used to apply pressure to hold the workpiece in place. Toggle clamps can be used to clamp just about anything that is round, square, or rectangular in shape. Toggle clamps are ideal for clamping irregular-shaped parts because their design allows for a wide range of adjustment and pressure. There are many applications where toggle clamps are used. They are commonly used in the construction industry to hold boards and sheets in place for on-site construction projects. Toggle clamps can be used to hold a workpiece in place during welding or soldering. They are also used in the automotive industry to hold parts in place while they are being assembled.

Benefits of Using Toggle Clamps

Toggle clamps are clamping devices that are used to hold workpieces in place during production. These are manual devices that are operated by hand. Toggle clamps are normally used to hold boards or sheets of metal in place for construction projects, or to hold two pieces of metal together while they are being welded or soldered. Toggle clamps can be used to clamp just about anything that is round, square, or rectangular in shape.

Toggle clamps are available in many different sizes, making them suitable for a variety of applications. The main advantages of using toggle clamps include: – They can clamp irregular-shaped parts: Toggle clamps are used to clamp irregular-shaped workpieces and boards because their design allows for a wide range of adjustment and pressure. – Can be used in various industries: Toggle clamps are used in many different industries to hold workpieces in place. They are commonly used in the construction industry to hold boards and sheets in place for on-site construction projects. – Can be easily operated manually: Toggle clamps are very easy to operate manually. They are manually operated clamping devices that can be operated by just one person.

Conclusion

Toggle clamps are manual clamping devices that are used to hold workpieces in place during production. There are many different types of toggle clamps available, and they are suitable for clamping irregular-shaped parts. Toggle clamps are easy to operate manually and can be used in many different industries. The main advantages of using toggle clamps include their ability to clamp irregular-shaped parts and their suitability for use in many different industries.

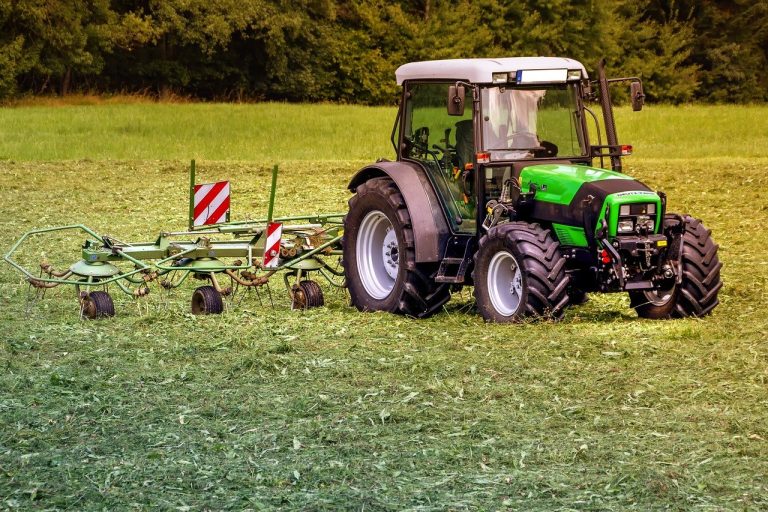

Farms come in all shapes and sizes, from one crop operations to diversified agribusinesses. Whatever the size of your operation, there’s likely a tractor that’s just right for you. But with so many options available, how do you know which one is the best choice for your farm? Read on to find out what you need to know about choosing the right tractor for your farm.

There are many factors to consider when buying a tractor, including its intended use, maintenance needs, performance and visibility (based on the type of work it will be doing), cost of ownership over time and resale value. The following article covers everything you need to know when choosing the right tractor.

What Type of Farm Requires Which Type of Tractor?

The type of tractor you select will depend on the type of work you need it for. Typically, three categories of tractors are used for large-scale farming: – Dryland – These tractors are used for row crops, such as corn and soybeans. A dryland tractor has a smaller engine (and a smaller cost of operation), which makes it well-suited for row crops, where there’s limited access to water.

Moisture-controlled – These tractors are best-suited to growing crops that require irrigation, such as melons, squash, tomatoes and peppers. Moisture-controlled tractors have larger engines and are used for the additional power needed to drive irrigation pumps.

Combine – Combine tractors are used for harvesting crops such as corn, soybeans, wheat and cotton. Combines typically have larger engines than row crop or moisture-controlled tractors, and are designed to pull heavy loads.

Engine & Tractor Type Basics

First, there are two main types of tractors: Combination tractors and speciality tractors. Combination tractors are the most common type of tractor. They combine a tractor’s pull and lift capacity with a self-propelled combine. Speciality tractors are used for specific functions, such as pulling a sprayer or hauling hay. Next, there are several different types of engines used in tractors. The most common are gas and diesel engines, with gas engines being used more frequently on row crop tractors and diesel engines being used more frequently in moisture-controlled and combine tractors.

How Much Should You Spend?

The amount you spend on a tractor will depend on several factors, including the engine type you select (gas or diesel), engine size, tractor type and brand. Gas and diesel engines range in price from £6,000 to £20,000 and £7,000 to £40,000, respectively, the bigger ones being a lot more still.

There are many different brands and models of tractors available, so it’s difficult to say exactly how much you should spend on one. The best way to determine what you should spend is by calculating how much your tractors will cost to operate over time, including fuel and maintenance costs. Combine this with the price you expect to get when you sell your tractor at the end of its lifespan, and you’ll have a better idea of what you can spend on a new tractor.

What’s Important When Selecting a Tractor?

Engine type – Gas or diesel? While there are other engine types available, gas and diesel are by far the most common. However, each engine type has its pros and cons. Gas engines are typically cheaper and cleaner burning than diesel engines, but also consume more fuel. Diesel engines are less expensive to maintain than gas engines, but are more expensive upfront. Figure out which engine type best meets your needs based on price and fuel consumption, as well as maintenance requirements. – Tractor type – Combination or speciality? As mentioned above, combination tractors combine a tractor’s pull and lift capacity with a self-propelled combine. Speciality tractors are used for specific functions, such as pulling a sprayer or hauling hay.

Brand and model – There are many different brands of tractors available, with each offering several models. When selecting a brand, it’s important to select one that has a good reputation for quality and reliability. When selecting a model, it’s important to choose one that meets your needs and is built for your operation.

What to Look for When Buying a New Tractor

Engine size – If you’ve decided to go with a gas engine, consider how large of an engine you need. For row crops, a smaller engine is perfectly adequate. For moisture-controlled crops, you’ll want a larger engine. For combine work, you’ll need a very large engine.

Displacement – Engine displacement refers to how much air an engine can move in one minute. A larger displacement engine has the capacity to move more air than a smaller displacement engine. For row crops, a smaller displacement engine is adequate. For moisture-controlled crops, you’ll want a larger displacement engine.

For combine work, you’ll need a very large engine.

Drive system – Crawler or wheel drive? Crawler is best-suited for uneven terrain and heavier loads. Wheel drive is best-suited for level terrain. If you’re unsure which drive system is best for your operation, consult with a dealer.

Hydraulics – Hydraulics is the process of sending oil through a system of tubes to power machinery. If you’ll be using your tractor for moisture-controlled crops, you’ll need hydraulics.

What to Look for When Buying a Used Tractor

Engine type – If you’re buying a used tractor, it’s best to stick with the same engine type (gas or diesel) as your current tractor. This will make it easier to find replacement parts, should you ever need them. – Maintenance history – Make sure the person you’re buying the tractor from has kept up with maintenance. You don’t want to buy a tractor that’s due for major repairs. – Tractor type – If you’re buying a used tractor, make sure you select one that’s appropriate for your operation. – Price – Buying used doesn’t mean you have to spend less. Be willing to pay a fair price for a tractor, whether it’s new or used.

Finding the Right Used Tractor

Start by looking for used tractors in your area. Post a free ad on Craigslist or reach out to local dealers to see what inventory they have. If you’re looking for a specific brand or model, reach out to that company and see if they have any used tractors available. If you’re looking for a specific model, such as a John Deere model or a Ford model, you can check out online used tractor sales channels, such as AgWeb.com or TractorHouse.com. You can also check out auction houses, such as eBay. If you’re looking for a specific model, such as a John Deere model or a Ford model, you can check out online used tractor sales channels, such as AgWeb.com or TractorHouse.com. You can also check out auction houses, such as eBay and of course check out those sites who are experts at matching just the right tractor to the user like Heming Engineering. See their page about Zetor tractors – https://www.heming-engineering.co.uk/tractors-and-machinery/zetor-tractors but remember they also offer Tafe and Siromer tractors as well as a range of attachments and other farming machinery.

Wrapping up

As you can see, there are many things to consider when choosing the right tractor for your farm. The type of tractor you select will depend on the type of work you need it for and your budget. The best way to find the right tractor is to determine what type of work it will be doing, how much you can spend and what type of engine is best for your operation. From there, you can select the right brand and model for your needs.
